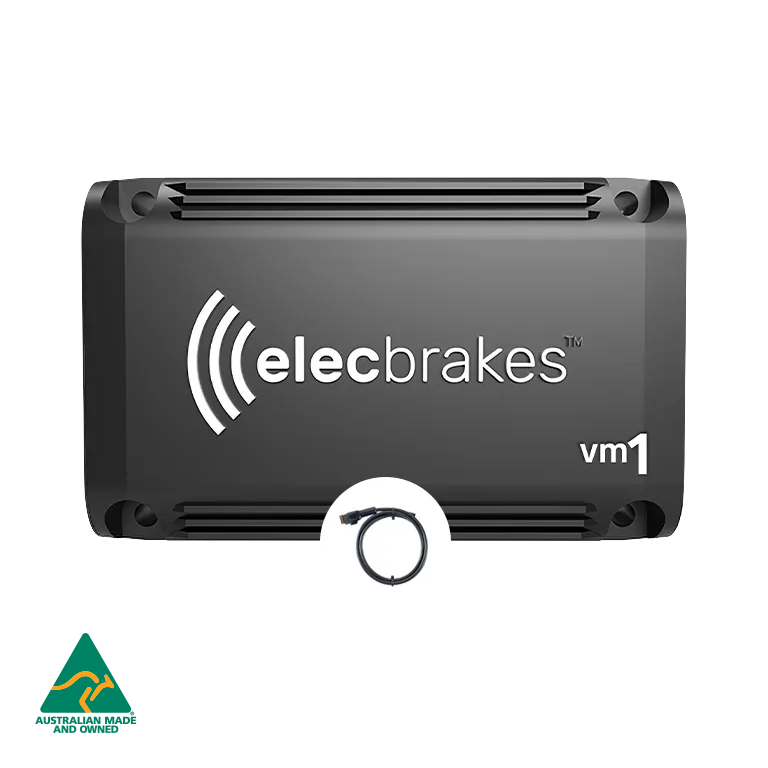

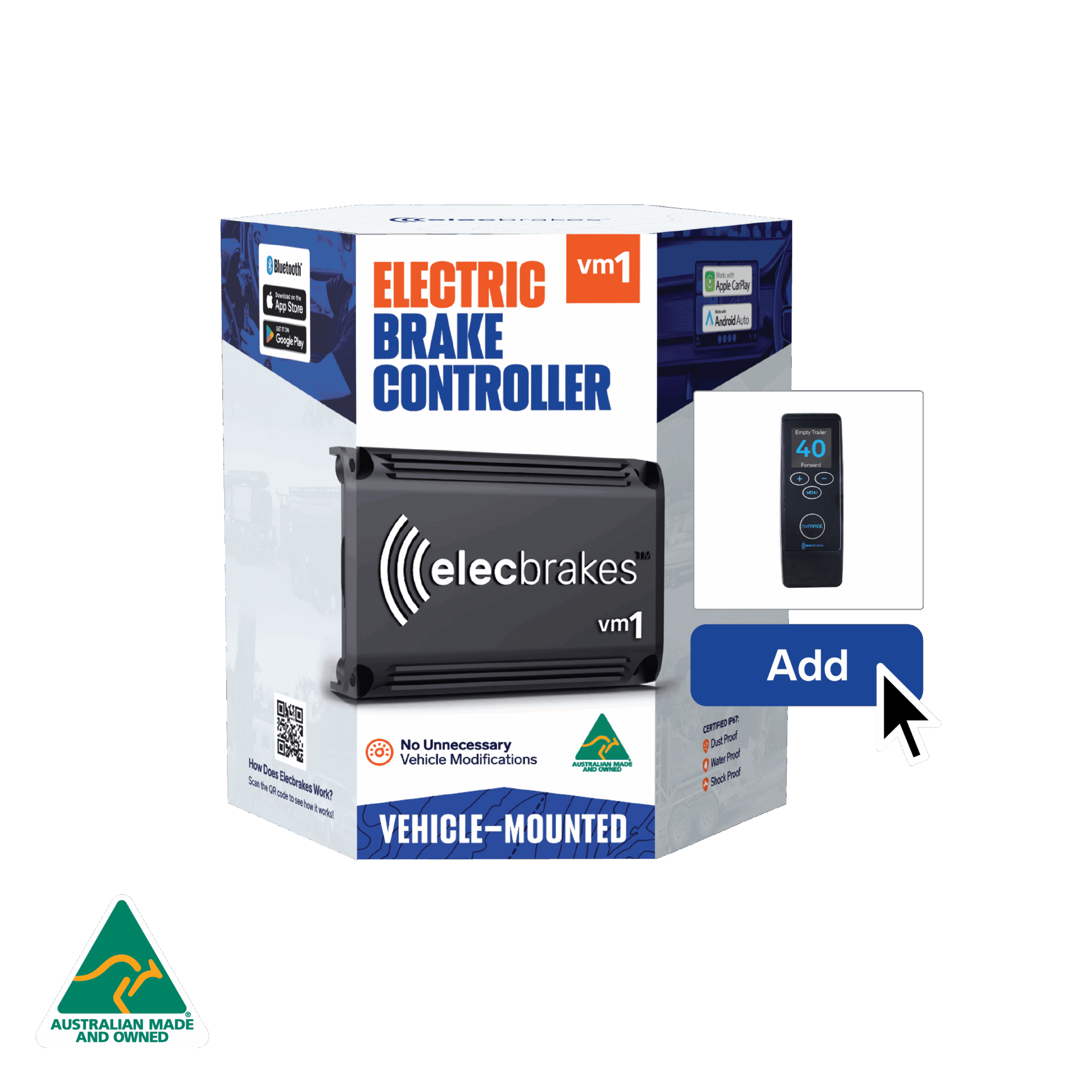

VM1 Vehicle-Mounted Brake Controller – Complete Set

Elecbrakes offers two top-tier options: the EB2 Trailer-Mounted Brake Controller and the VM1 Vehicle-Mounted Brake Controller. Both are designed with unique benefits to cater to your specific towing needs, whether you’re using multiple vehicles or trailers.

With the EB2 mounted on your trailer, any vehicle can tow it without needing a brake controller installed. On the other hand, the VM1 is installed in your vehicle, allowing you to tow multiple trailers with a single vehicle.

The following comparison will help you understand the key differences and features between the EB2 and VM1, so you can confidently select the best brake controller for your setup – Compare Controllers.

• VM1 Electric Brake Controller.
• 1.5m wired leader.

VM1 requires a dedicated 25 Amp 12V DC, or 12 Amp 24V DC Auxiliary power circuit as its power source, utilising the brake light circuit as its trigger. VM1 supports up to 3 braked axles (24A output). It’s good practice to check for output of at least 10Vrms when sourcing auxiliary power.
– If a new Auxiliary circuit needs to be routed, power may be sourced from the tow vehicles battery or an ignition triggered fuse block. If using an existing power source, please ensure the amperage rating is suitable for installation if any other accessories are sharing this circuit.

Preferably mounted to the rear of the vehicle in the boot area, rear quarter, ute tray, or vehicle underside, fastened with 4x self tapping screws (supplied). A practical location for the vehicle must be selected to allow the provided cable to reach auxiliary power supply and vehicle trailer socket wiring.

For ease of installation, we recommend the following:

• Elecbrakes brake controller kit
• Electric drill + relevant PPE
• 4mm drill bit
• No. 3 phillips head driver bit
• Marker pen
• Lubricant


Once a suitable location for mounting is established, mark and pre-drill the mounting holes and screw the brake controller carefully in place.
