TRAILER-MOUNTED BRAKE CONTROLLER
WHAT IS THE EB2?
Our trailer-mounted EB2 electric brake controller is designed for versatile towing. With simple plug & play installation, it combines enhanced braking response, built in SwayControl technology, and total system visibility to make towing easier, and safer for those who share their trailer or tow with multiple vehicles.
Enjoy an easy DIY installation using a plug-and-play adaptor, with the flexibility to tow your trailer using multiple vehicles.
EB2 measures your vehicle’s braking and applies smooth, proportional braking to your trailer. The system continuously adjusts braking output for safer, more controlled towing, with five user-defined programs available for different road and load conditions.
Watch: How it works
Ready to buy?
From A$699
FIND A STOCKISTKEY FEATURES
Discover the key features that make EB2 easier to install, simpler to control, and more flexible across a wide range of towing setups.
Integrated SwayControl Technology
Real-time SwayControl built-in, making your brake controller an all-in-one towing solution. No costly add-on hardware required.
World-First Apple CarPlay & Android Auto™ Compatibility
Full braking visibility and diagnostics in real-time through the Elecbrakes App, seamlessly integrated with your vehicle's display.
Ultimate Multi-Vehicle Flexibility
Switch your trailer between cars, share with friends, or manage rental fleets. Any tow-capable vehicle can tow your trailer without needing a brake controller installed.
Highly Customisable User Control
Fine-tune brake response, sway control sensitivity, and more to match your specific towing setup and conditions.
10-Minute DIY Installation
Enjoy an easy installation you can complete at home. No dashboard drilling, complex wiring or professional installation is required. EB2 is compatible with both our elecConnect and plug & play adaptors.
Built Tough
IP67-rated. Dust proof, water proof, and shock proof. Australian-designed, tested, and manufactured for our harshest conditions.
FOR EVERY APPLICATION
Towing should feel safe, smooth, and controlled. The EB2 delivers proportional braking that feels natural, whether you’re towing a heavy-duty caravan for a family getaway, a horse float for a weekend show, a boat trailer for a coastal escape, or navigating a job site with a loaded tradie trailer.
INSTALLATION STEPS
Getting started with your Elecbrakes EB2 is simple. Follow these steps to install, connect and configure your brake controller before towing.
- 1
Mount your EB2

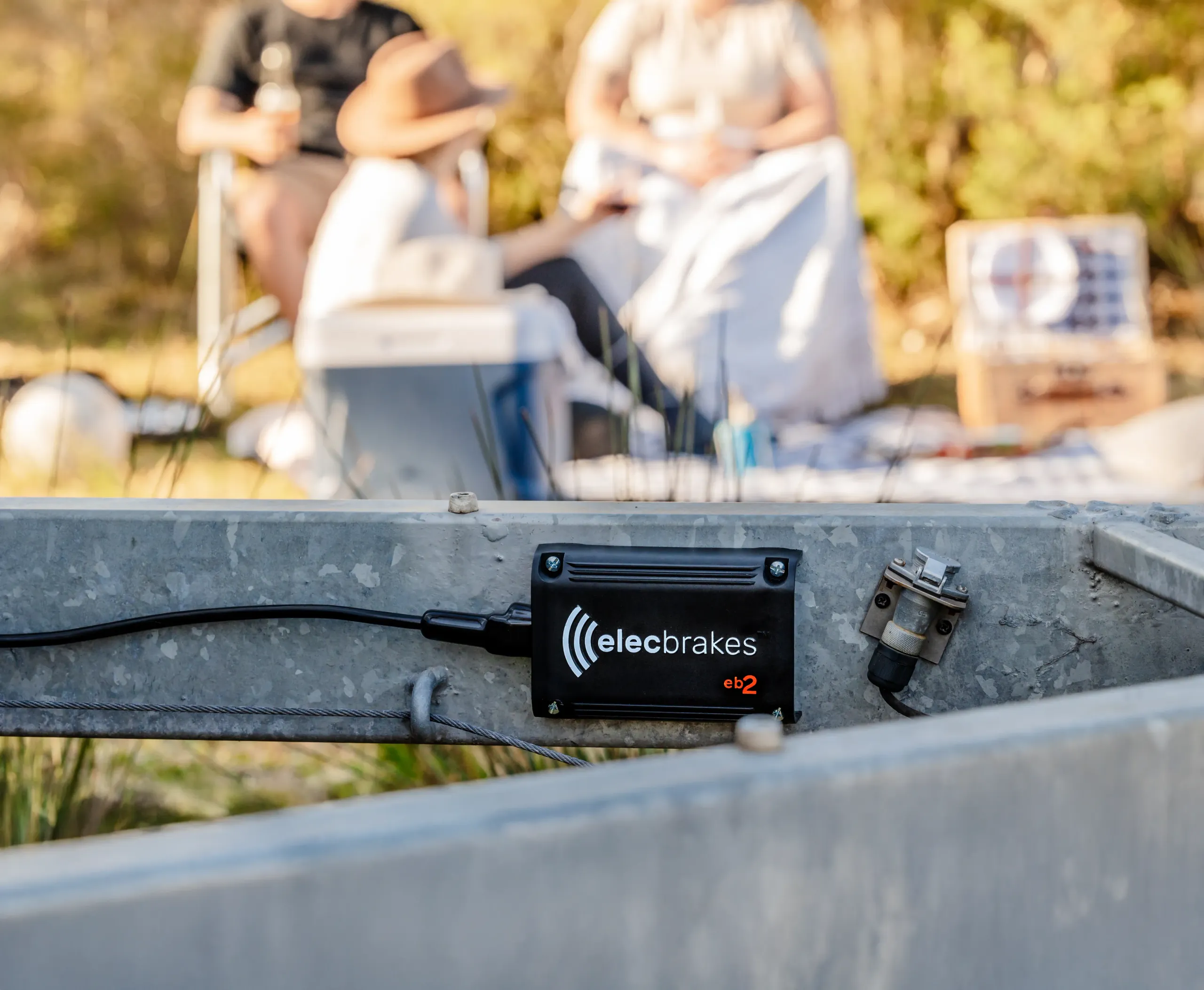

Secure the brake controller to your trailer’s drawbar using the supplied screws. It can be mounted vertically or horizontally, provided one face or edge is parallel to the ground.
- 2
Connect the adaptor
Connect the Elecbrakes Plug + Play Adaptor to your EB2, trailer plug and tow vehicle socket.
- 3
Download the app
Use Tap + Tow by tapping your phone on the Elecbrakes logo to download the Elecbrakes app. You can also download it directly from the App Store or Google Play.
- 4
Power your EB2
With your EB2 mounted and plugged in, start your vehicle and switch your headlights to the full manual setting, not Auto, daytime running lights or high beam.
- 5
Connect your EB2 to the App
Open the app, simply select the EB2 image. You can add the device either by tapping your phone on the Elecbrakes logo again, or searching manually.
- 6
Configure and test
Follow the steps in the app to fine-tune the braking response. Test your settings in a safe location before towing.
Using the Elecbrakes Remote?
Complete the initial setup using the Elecbrakes app before pairing your Elecbrakes V3 Remote. The Remote must remain connected to USB power while in use.
For complete installation, setup and operating instructions, refer to the Resources & Support section below.
EB2 SPECS
Core electrical, fitment and environmental specs for EB2.
| Spec.Specification | Details |
|---|---|
| Input voltage | 10V – 28V |
| Max output voltage | 12V RMS |
| Output current | 24A continuous |
| Installation | Trailer-mounted |
| Brake programs | 5 profiles |
| SwayControl | Integrated |
| Protection | IP67 |
| Weight | 410g |
| Dimensions | 140mm x 90mm x 40mm |
| In the box |
|
| Warranty | 2 Years |
RESOURCES & SUPPORT
Access key EB2 reference documents, installation guides, and find troubleshooting support through the Help Centre.
INSTALL VIDEOS
Watch step-by-step install and setup videos in our video library for a more visual guide to getting your EB2 configured.
HELP CENTRE
Get quick answers on install advice, troubleshooting, app connectivity, and product support from the Elecbrakes Help Centre.
WHAT OUR CUSTOMERS SAY
FREQUENTLY ASKED QUESTIONS
Elecbrakes offers two top-tier options: the EB2 Trailer-Mounted Brake Controller and the VM1 Vehicle-Mounted Brake Controller. Both are designed with unique benefits to cater to your specific towing needs, whether you are using multiple vehicles or multiple trailers.
With the EB2 mounted on your trailer, any vehicle can tow it without needing a brake controller installed. The VM1 is installed in your vehicle, letting you tow multiple trailers with a single vehicle.
Compare the two side by side on the products page to confidently select the best brake controller for your setup.

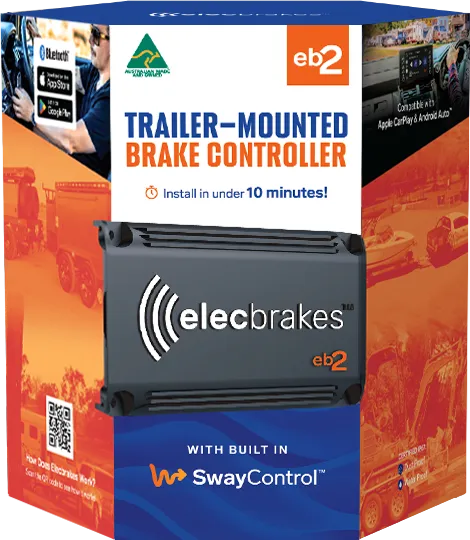

- EB2 Electric Brake Controller
- 4x mounting screws
An adaptor and the Elecbrakes Remote are sold separately. Pick the adaptor that matches your tow vehicle socket and trailer plug: an elecConnect™ adaptor for flat pin combinations, or a wired adaptor where either end is a round pin connector.
You must choose the appropriate Elecbrakes adaptor based on your tow vehicle's trailer wiring socket and your trailer plug. The differences are in the shape and pin count.
Start by confirming the socket type fitted to the rear of the tow vehicle, then select the trailer plug type.
Elecbrakes provides an adaptor for each combination of commonly available plug and socket, allowing you to connect your vehicle to your new trailer, or vice versa, potentially without changing the plug or socket on either. When towing with multiple vehicles, it may be necessary to have more than one adaptor type on hand to suit different combinations.
Yes. A Wired Leader provides a permanent alternative to a plug-and-play adaptor by connecting directly to the trailer's wiring rather than sitting between the existing trailer plug and vehicle socket.
Match the wire colours to the trailer plug using the wiring guide above, and refer to the pin numbers in the EB2 Technical Manual. Inside the trailer plug that connects to the tow vehicle socket, the service brake wire (blue) must be joined to create a closed circuit between the brake controller and the brake magnets.
Yes. Elecbrakes brake controllers are designed to function with 12V and 24V vehicles registered in Australia and New Zealand, with respect to national standards and applicable ADRs. This includes modern vehicles equipped with trailer wiring modules, and earlier vehicles with fused circuits which are designed to meet the same national standards and ADRs for towing applications.
