Switching Trailers? What to Know Before You Tow
Switching between a caravan, boat trailer or work trailer is part of everyday towing for many drivers. Each trailer can place weight differently and respond differently on the road, which means trailer balance, braking feel and stability can change from one tow to the next.
That is why safe towing starts with the same question every time: is this trailer loaded, balanced and braked correctly for this trip?
For drivers who regularly switch between trailers, the best setup is one that makes towing both safe and simple – allowing you to check your load, match your braking response and stay in control without starting from scratch every time.
Answer summary
- Trailer weight distribution changes between caravans, boat trailers and work trailers, which means balance, tow ball weight and braking feel can vary from one tow to the next.
- Load position, trailer height and side profile all affect stability, sway risk and overall towing control.
- Your electric brake controller should be adjusted to suit the trailer and load, rather than relying on the same default setting for every tow.
- Saving different brake profiles for different trailers makes switching faster, safer and more consistent.
- A vehicle-mounted controller designed for multi-trailer towing – such as the Elecbrakes VM1 – allows you to tow different trailers from one vehicle while keeping braking response properly matched to each towing setup.
Why trailer weight distribution changes between tow types
Trailer weight distribution varies because caravans, boats and work trailers carry weight in different ways and respond differently under braking, cornering and crosswinds.
A caravan has a tall body and fixed internal layout. A boat trailer carries a long, narrow load with weight concentrated around the hull and motor. A work trailer often carries tools, materials or machinery that can shift depending on how it is loaded.
These differences affect how the trailer behaves on the road, including:
- stability at speed
- sway risk
- braking response
- tow ball weight
- steering and control of the tow vehicle
A trailer that is too light on the tow ball can become unstable, while too much tow ball weight can overload the rear of the vehicle and affect steering and braking balance.
The goal is not just staying under your towing capacity. It is making sure the trailer is loaded and balanced so it tracks straight, brakes smoothly and remains stable behind the vehicle.
Caravan towing: weight distribution, sway risk and braking
Caravans require careful weight distribution because they are tall, heavy and more exposed to sway.
Poor load placement, incorrect tow ball weight and crosswinds can reduce stability. Even within legal towing limits, incorrect load distribution can reduce control and braking balance.
When towing a caravan, focus on these key areas.
Tow ball weight
Tow ball weight has a major impact on caravan stability. Too little weight can increase sway, while too much can overload the rear axle of the tow vehicle and affect steering control.
Pack heavy items low and close to the axle area rather than at the rear of the van.
Sway risk
Because caravans have a larger side profile, they are more affected by crosswinds, downhill sections and sudden steering inputs.
Good load distribution is the first step in reducing sway risk. A correctly adjusted caravan brake controller helps maintain stable, controlled braking.
Braking response
Caravan trailer brakes should engage smoothly with the tow vehicle. If the gain is too low, the caravan can push the vehicle. If it is too high, braking may feel abrupt.
Setting a dedicated brake controller profile for your caravan helps keep braking balanced and predictable.
Boat trailer towing: what changes on the road and at the ramp
Boat trailers behave differently because the load shape, weight placement and braking systems can vary from other trailers.
Fuel levels, gear placement and the position of the boat itself can all affect balance.
Key differences to consider include:
Load position
Outboards, fuel tanks, batteries and equipment can shift the trailer’s balance. Keep heavy items low and avoid placing excess weight at the rear.
Brake system differences
Some boat trailers use electric-over-hydraulic braking systems. In these setups, the brake controller manages the braking response, while the actuator requires its own power supply.
The Elecbrakes VM1 is compatible with both 12V and 24V vehicle and trailer setups, providing flexibility across different towing combinations.
Launch conditions
Boat ramps introduce wet surfaces and frequent stop-start driving. Smooth, proportional braking becomes especially important in these environments.
If you tow both a boat and a caravan, treat them as separate setups. Check the load balance and confirm your brake controller settings before each trip.
Work trailer towing: load balance changes every day
Work trailers often see the most variation in load distribution.
Unlike caravans or boats, a tradie or flat-bed trailer may carry tools, machinery or building materials that change daily. Poor loading can quickly affect stability.
Common loading issues include:
- too much weight behind the axle
- uneven side-to-side loading
- tall items raising the centre of gravity
- unsecured equipment moving under braking
An unbalanced trailer can feel unstable when braking or cornering and may place excess load on the tow vehicle.
The safest approach is simple: keep heavy items low, distribute weight evenly and avoid loading the rear of the trailer too heavily.
Because work trailer loads change frequently, it is also important to check your electric trailer brakes and brake controller settings regularly.
How to adjust your brake controller settings when switching trailers
Brake controller settings should change when the trailer, load or towing conditions change. A loaded caravan, a boat trailer and a work trailer can each need a different braking response.
When setting up an electric brake controller, focus on these basics:
1. Start with the trailer you are towing
Each trailer has different weight, balance and braking characteristics. Do not assume the last setup will suit the next one.
2. Test at low speed first
Drive slowly in a safe area and apply the brakes lightly. Adjust the minimum response until you can just feel the trailer braking.
3. Fine-tune the forward response
Brake normally over a range of conditions and adjust the forward response until the trailer and tow vehicle brake smoothly as one.
4. Check reverse and manual override settings
If needed, adjust reverse response for slower manoeuvring and set manual override to a level that suits your setup.
5. Save different programs
If you switch between trailers often, saved programs make setup faster and more consistent.
The Elecbrakes VM1 allows you to save up to five user-defined programs, which is useful for different trailer weights, towing conditions and driver preferences.
What to check every time you hitch a different trailer
Every trailer should have a quick pre-departure check, even if it was towed recently.
A short inspection can prevent most towing issues before they begin.
Quick pre-departure checklist:
| Check | What to look for | Why it matters |
|---|---|---|
| Tow ball weight | Within vehicle and hitch limits | Supports stability and sway control |
| Load balance | Heavy items low and centred | Improves tracking and braking |
| Tyre pressure | Correct for vehicle and trailer | Helps grip and stability |
| Lights and plug connection | Indicators and brake lights working | Required for safety and compliance |
| Brake profile | Correct setting for the trailer | Ensures smooth trailer braking |
Also confirm the coupling is locked, safety chains are secure and any loose equipment is properly restrained.
One brake controller that works across all your trailers
If you tow multiple trailers with one vehicle, a vehicle-mounted brake controller can simplify your setup.

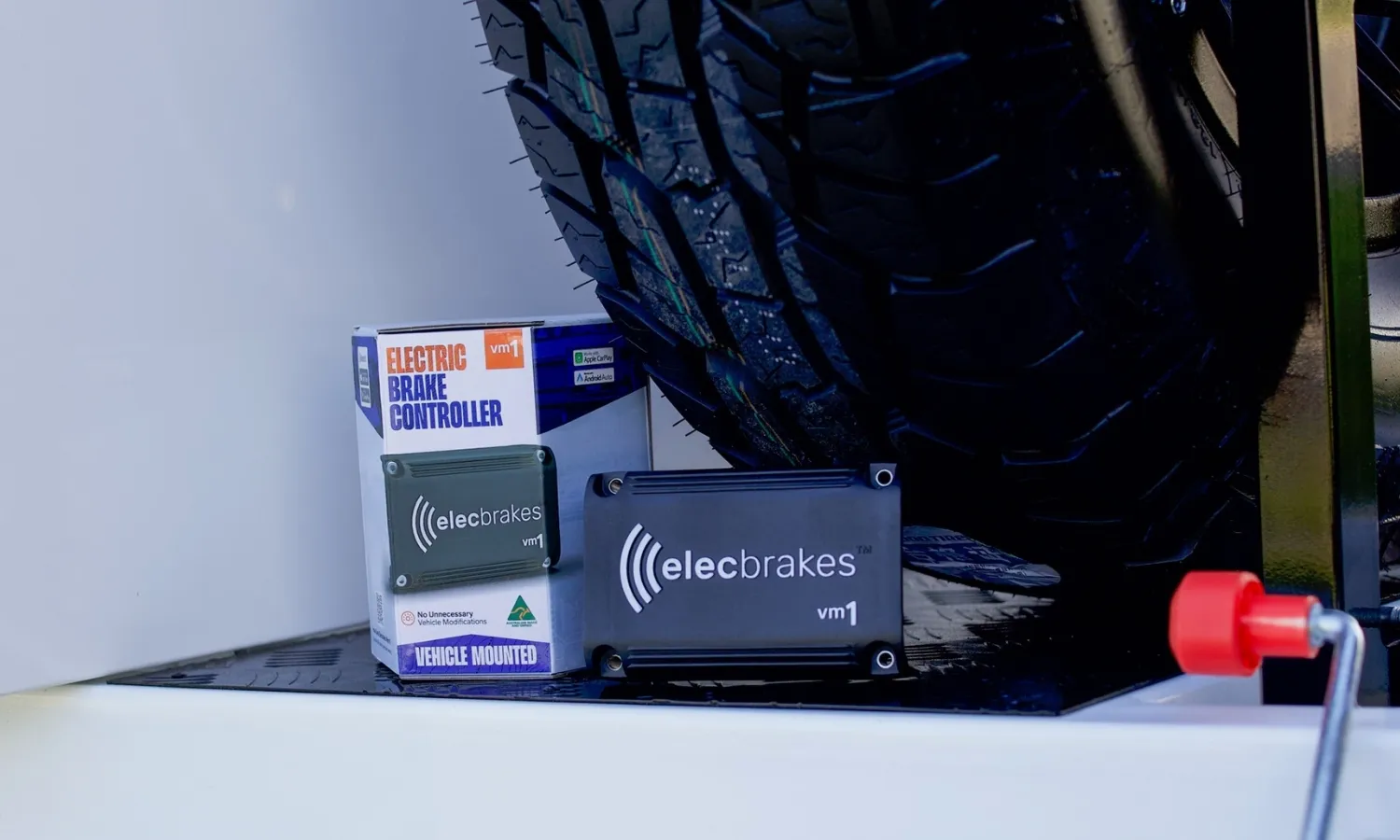

The Elecbrakes VM1 is designed for drivers who regularly switch between trailers. Mounted to the tow vehicle, it allows you to manage braking for different trailers from one system.
This suits drivers who tow a caravan one trip, a boat trailer the next and a work trailer during the week.
Key VM1 benefits include:
- Vehicle-mounted setup for towing multiple trailers
- No in-vehicle modifications required, preserving your dashboard and interior
- Built in SwayControl for every trailer you tow
- Up to five customised braking profiles
- Proportional braking for smoother stops
- Dynamic Slope Compensation for improved braking on hills
- Apple CarPlay and Android Auto integration
- Compatibility with 12V and 24V vehicle and trailer systems
- Durable IP67-rated construction
With saved braking profiles, you can switch between trailer types while keeping the braking response matched to each setup.
FAQ: common questions about towing different trailers
What is the 85 rule for caravans?
The 85 rule suggests that a caravan’s loaded weight should not exceed about 85% of the tow vehicle’s kerb weight. It is commonly used as a guideline to help improve stability, but the final limits should always follow the vehicle’s towing capacity and maximum tow ball download.
What is the 60/40 rule for trailers?
The 60/40 rule refers to placing roughly 60% of the trailer’s load in front of the axle and 40% behind it. This helps maintain correct tow ball weight and keeps the trailer balanced and stable while towing.
What is the 80/20 rule for towing?
The 80/20 rule suggests loading about 80% of the trailer’s weight forward of the axle and 20% behind it to maintain proper tow ball weight and towing stability. It is sometimes used as a general load-balancing guideline for trailers.
How does tongue weight affect towing?
Tongue weight, also called tow ball weight, is the downward force the trailer applies to the tow ball. Too little tongue weight can increase sway, while too much can overload the rear of the tow vehicle and affect steering and braking performance.
Should a tow vehicle be heavier than a trailer?
Yes, in many cases a heavier tow vehicle improves stability when towing. A vehicle with greater weight and towing capacity is better able to control the trailer, especially during braking, cornering and crosswinds.
How much towing capacity do I need to pull a boat?
You need enough towing capacity to cover the total loaded trailer weight, including the boat, trailer, fuel, batteries, gear and water. Always calculate towing capacity based on the fully loaded trailer, not the boat’s dry weight.
